CPCI216-64HL_2PS-A1
|
|
|
- PICMG2.16 compliance
- 4 slots for 6U card installation.
- 2 x 47pin connector for cPCI PSU installation.
- 33/66 MHz
- 32/64 Bit
– VI/O are user selectable to a +5V or +3.3V
**Related product: P/N P-284283-H-CP (cPCI 2U horizontal type chassis)
|
|
|
|
|
|
|
|
|
|
|
|
CPCI20-64HL_2PS-A1
|
|
|
- PICMG2.0R3.0 compliance
- 4 slots for 6U card installation.
- 2 x 47pin connector for cPCI PSU installation.
- 33/66 MHz
- 32/64 Bit
– VI/O are user selectable to a +5V or +3.3V
**Related product: P/N P-284283-H (cPCI 2U horizontal type chassis)
|
|
|
|
|
|
|
|
|
|
|
|
CPCI216R10U6S2-A1
|
|
|
- PICMG2.16 compliance
- 2 slots for 6U card installation.
- 33/66 MHz
- 32/64 Bit
– VI/O are user selectable to a +5V or +3.3V
**Related product: P/N P-184283-H (cPCI 1U horizontal type chassis)
|
|
|
|
|
|
|
|
|
|
|
|
CPCI20-62HBL-A1
|
|
|
- PICMG2.0R3.0 compliance
- 2 slots for 6U card installation.
- 33/66 MHz
- 32/64 Bit
– VI/O are user selectable to a +5V or +3.3V
**Related product: P/N P-184283-H (cPCI 1U horizontal type chassis)
|
|
|
|
|
|
|
|
|
|
|
|
68VLR_2PS-A1
|
|
|
-PICMG2.0R3.0 compliance
-6U 8slots with 2* 47P connectors; system slot on left hand side
-Rear panel IO on P3,P4,P5 at all slots
-32/64 bit; 33/66 MHz
-VI/O are user selectable to a +5V or +3.3V
-See user manual in PDF file.
**Related product: P/N P-784283-CP (cPCI 7U*40HP*283mm vertical type chassis)
|
|
|
|
|
|
|
|
|
|
|
|
PICMG2.0R3.0 -series
|
|
|
See P/N and more details in the PDF file.
Key Features :
– 3U Backplane: 4/6/8/16/18 slots
– 6U Backplane: 2/4/8/10 slots
– 9U Backplane: 2 slots with 47 pin sockets
– Conform to PICMG 2.0 R3.0
– Support Hot Swap feature of PICMG 2.1 R2.0
– VI/O are user selectable to a +5V or +3.3V
– All signal lines characteristic impedance are set to 65Ω
– Customization is welcome and available.
|
|
|
|
|
|
|
|
|
|
|
|
PICMG2.16 R1.0-series
|
|
|
See P/N and more details in the PDF file.
Key Features :
– Conform to PICMG 2.16 R1.0
– Support Hot Swap feature of PICMG 2.1 R2.0
– CompactPCI Packet Switching Backplane (CompactPCI/PSB)
– Dual PSB Topology
– Leverage IEEE 802.3-2000 1000BASE-T,
providing physical and data link layers
– Physical interface at rates of 10, 100,
or 1000 Mb/s on a slot-by-slot basis
– Support full-duplex bit rates of up to
2000 Mb/s per slot
|
|
|
|
|
|
|
|
|
|
|
|
CPCI216U6S8HL-A2
|
|
|
-PICMG2.16 compliance
-6U 8slots with 2* ATX 20P connectors; system slot on the bottom
-Rear panel IO on P3,P4,P5 at all slots
-32/64 bit; 33/66 MHz
-VI/O are user selectable to a +5V or +3.3V
-See user manual in PDF file.
**Related product: P/N P-484283-H or P-484283-H-CP (cPCI 4U*84HP*283mm horizontal type chassis)
|
|
|
|
|
|
|
|
|
|
|
|
PICMG2.5R1.0-series
|
|
|
See P/N and more details in the PDF file.
Key Features :
– Conform to PICMG 2.5 R1.0
– Support Hot Swap feature of PICMG 2.1 R2.0
– Time Division Multiplex (TDM) bus signal
of the ECTF H110 (CT Bus)
– Either 2-wire or 4-wire Tip-Ring interface
– VI/O are user selectable to a +5V or +3.3V
– All signal lines characteristic impedance are set to 65Ω
|
|
|
|
|
|
|
|
|
|
|
|
PXI R2.1-series
|
|
|
See P/N and more details in the PDF file.
Key Features :
– Conform to PXI R2.1
– Support Hot Swap feature of PICMG 2.1 R2.0
– Daisy-chained Local Bus
– Trigger Bus and Star Trigger slot
– System reference Clock
– VI/O are user selectable to a +5V or +3.3V
– All signal lines characteristic impedance
are set to 65Ω
|
|
|
|
|
|
|
|
|
|
|
|
CPCI20-34VRR-32-A1
|
|
|
-PICMG2.0R3.0 compliance
-3U 4Slots, system slot on right hand side
-32 bit, I/O long pin
-33/66 MHz
-See user manual in PDF file. Or contact us for more details.
|
|
|
|
|
|
|
|
|
|
|
|
CPCI20-38VLR-32-A1
|
|
|
-PICMG2.0R3.0 compliance
-3U 8Slots, system slot on left hand side
-32 bit, I/O long pin
-33/66 MHz
-See user manual in PDF file. Or contact us for more details.
|
|
|
|
|
|
|
|
|
|
|
|

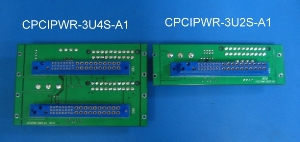

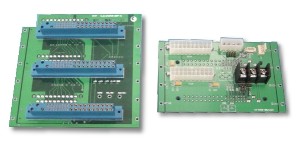

Power backplane with P47 connector
|
|
|
P/N CPCIPWR-3U4S-A1: Power backplane with 2 P47 connectors for 3U8HP cPCI PSU.
P/N CPCIPWR-3U2S-A1: Power backplane with 1 P47 connectors for 3U8HP cPCI PSU.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CPCI Bridge-series
|
|
|
A pallet type PCI/PCI bridge board for bus expansion of a CompactPCI bridge mounting slot effective type.
- cPCI or PXI bridges
- 64-bit version (Intel 2154)
- Left to right
|
|
|
|
|
|
|
|
|
|
|
|
Round Head Screw Slotted-2
|
|
|
Material: Steel with nickel plating
Used for backplanes.
| Dimension
(mm) |
Part
No. |
Packs
of |
| M3 x 15 |
M-472
|
50 |
|
|
|
|
|
|
|
|
|
|
|
|
Power Tap Connector 6pin, solder
|
|
|
- Power Tap Connector 6pin With Screw Mount Terminal, solder.
- Number of Pins: 6 pin
- The screw mount terminal accommodates M4 screws.
- Material: Brass with Sn plating
| Specifications |
Part
No. |
Packs
of |
| 6pin, 10mm height, for M4 screws |
8806
|
100 |
|
|
|
|
|
|
|
|
|
|
|
|
Power Tap Connector 10pin, solder
|
|
|
- Power Tap Connector 10pin With Screw Mount Terminal, solder.
- Number of Pins: 10 pin
- The screw mount terminal accommodates M4 screws.
- Material: Brass with Sn plating
| Specifications |
Part
No. |
Packs
of |
| 10pin, 10mm height, for M4 screws |
8810
|
100 |
|
|
|
|
|
|
|
|
